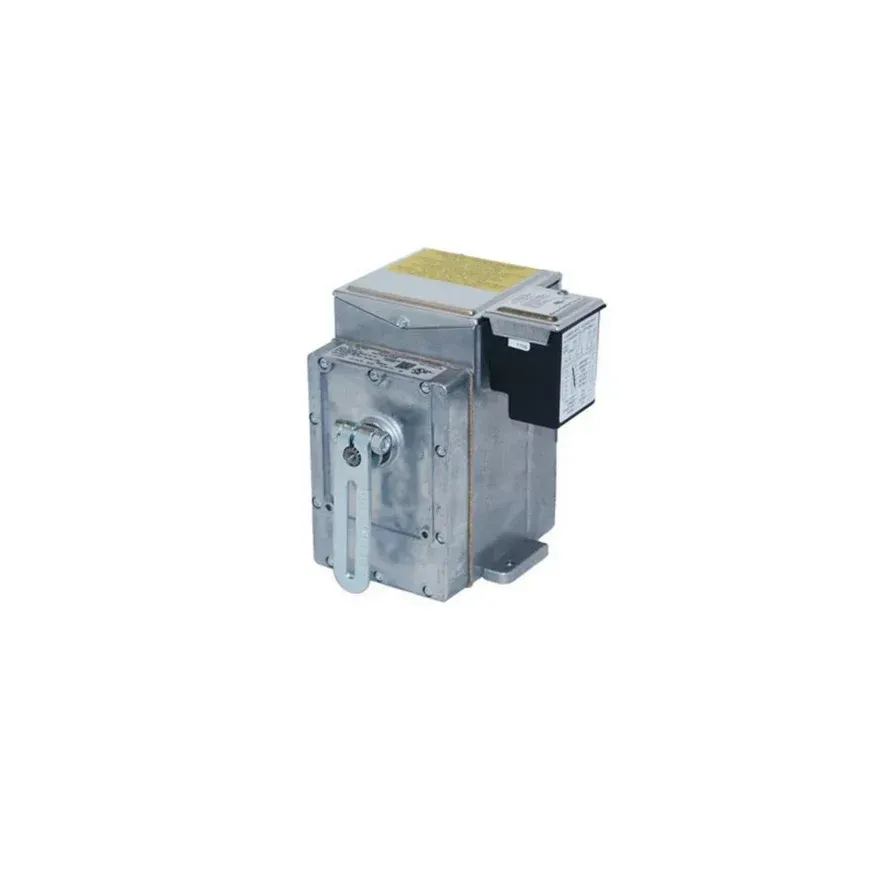

EMP-424-5 Dungs Electric Actuator P/N: 269223

DUNGS actuators are designed to operate dampers, butterfly valves and similar devices.

Specifications:

• 60 in lb Output; 90 deg
• Electrical ratings: 120 Vac, 60 Hz
• Enclosure rating: NEMA Type 4
• Auxiliary Switch: SPDT; 6A @ 120 Vac
• Ambient temperature rating: -40°F to +136 °F (-40 °C to +58 °C)
• Operating mode: Proportioning, 4-20 mA Input
• Size: 6 5/8” x 5 3/8” x 7” (L x W x H)
• 1/2” Shaft Crank arm included, Capable of 180° rotation with 180° slide wire
